Tiger

Tiger

Booms and tank

Work. width (m) Content (l)
21 - 30 2000 - 4000

Description

Basic equipment

  • AR 250 pump for the booms up to 24m and 3000l tank
  • AR 280 pump for the booms over 24m and the tank over 3000l driven hydraulically from the tractor
  • fiberglass tank with breakwaters, internal washing, pressure and overflow agitation
  • manually tilting PE 60l admixing tank with quadruple function controller, water mark, rinsing nozzle and agitating nozzle for canisters
  • white tank for clean water without storage box with watermark
  • external 2” filling and suction
  • 1 suction + 2 pressure filters
  • Topline control - remote switching of sprayer’s operation functions
  • computer ME - without terminal
  • air control fitting
  • 6 sections of working width
  • booms with active tilting and potentiometer
  • full set of shock absorbers on the booms and swing
  • stainless steel pipes in the booms Ø 20mm with triple nozzle holders in 50cm intervals

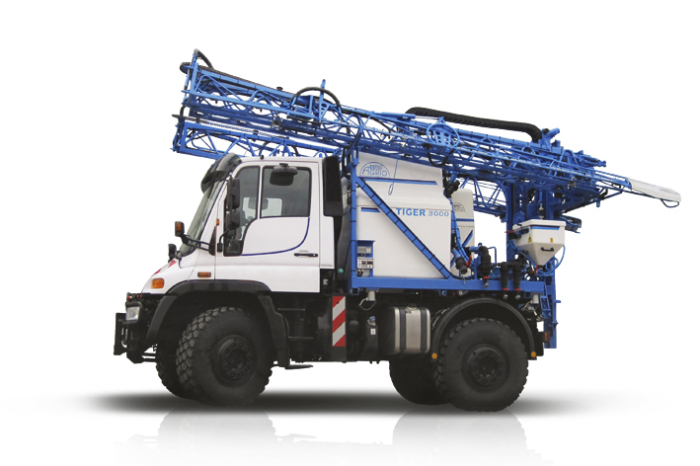

The TIGER with 4000l tank is the extension sprayer for various chassis such as the JCB Fastrac, MB Unimog, and MB-Trac. It is a suitable machine for service companies that need to move quickly from one customer to another . Even though the chassis has low ground clearance, it performs efficiently in autumn and spring applications.
