Dino

Dino

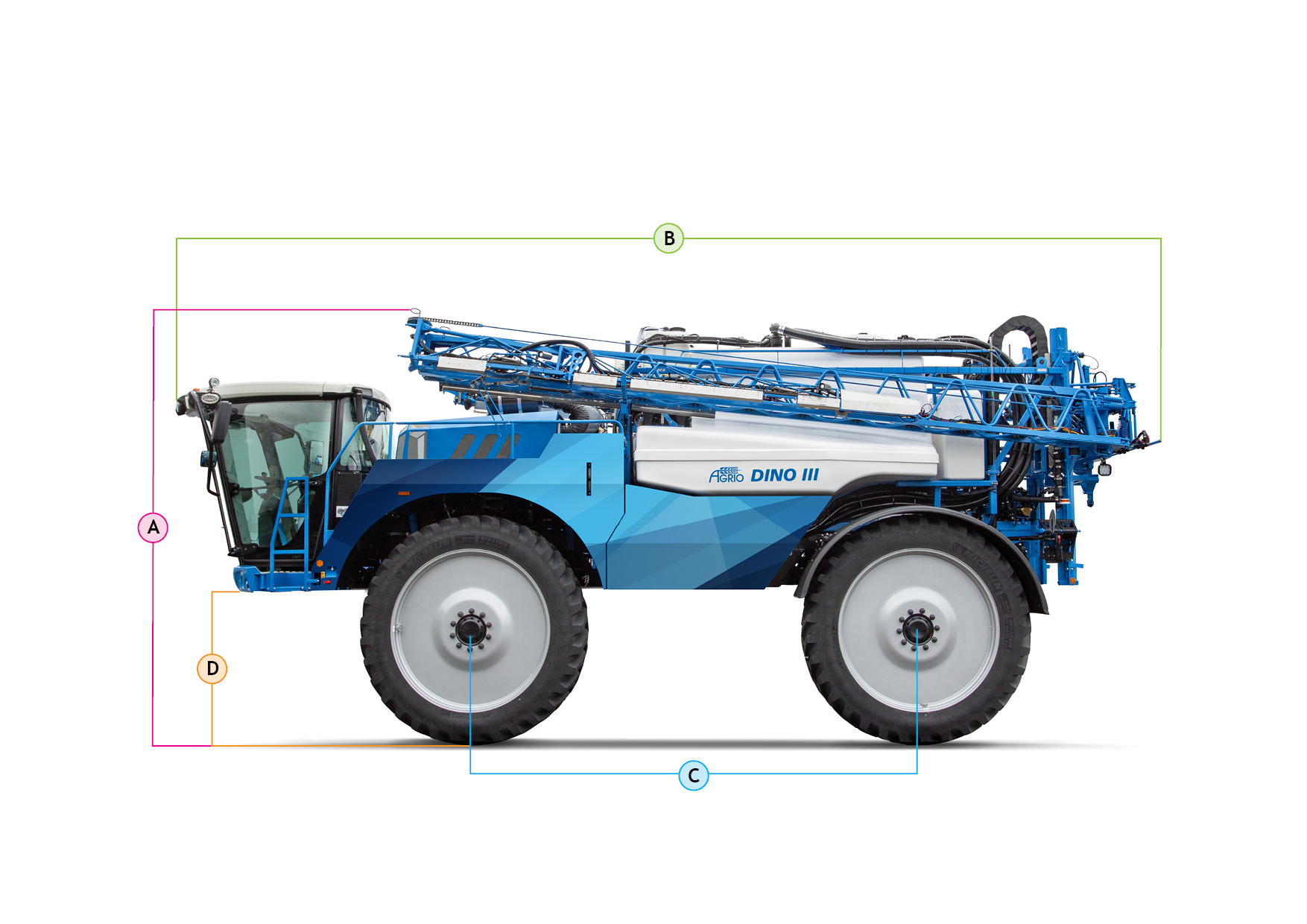

Dimensions

Range (m) A B C D
24 - 36 3700 - 4000 9000 3850 2850

D Indicated width of the sprayer

Weight

Type Empty Full
DINO 6600 10500 17500

Booms and tank

Work. width (m) Content (l)
18 - 36 6600

Wheels

  • 380/90 R46 172 A8/172 D

Description

Cabin

  • comfortable cabin CLAAS


Chassis

  • FPT engine with 210 kW output, emission norms Stage V
  • hydraulic pump carriage Poclain Hydraulics
  • integrated brakes
  • hydraulic differential lock
  • pneumatic suspension of front and back axle
  • steering of both axles, crab mode,
    3 gears (field mode)
    5 gears (road mode)
  • fuel tank of 290 l volume
  • wheels 380/90 R46 172 A8/172 D


Pumps / Filling

  • piston-membrane pump 2 x AR 185 powered by hydraulics of the chassis
  • outside filling and suction 2”


Water / Tank

  • fibre glass tank with breakwaters 6600 l
  • pneumatic spraying regulation
  • internal flushing of the tank
  • pressured mixing and overflow mixing
  • hydraulic hinged PE 60 l induction hopper
  • clean water tank 600 l
  • electronic watermark TANK-Control


Computer / Electronics

  • ME computer without terminal


Boom / Distribution

  • 6 - 8 sections
  • Topline controls - remote control of work functions of the sprayer
  • full suspension of boom
  • boom with active tilting and potentiometer
  • stainless distribution in the boom Ø 20 mm
  • with triple nozzle holders 50 cm apart


Transport speed 50 km/h



Controls

  • road and working mode
  • automatic transmission in both modes
  • maximum transport speed up to 50 km/h
  • speed control by joystick or pedal
  • cruise control
  • terminal for display and control of drive, steering and engine functions
    (temperature, revolution, oil/fuel level, error messages,
    choice of driving mode, etc….)

Fully equipped comfortable cabin CLASS

  • ergonomic handling
  • CLAAS joystick
  • comfortable heated seat with air extraction
    (the highest comfort)
  • air conditioned cabin
  • special defaming of the cabin
  • filtration category 4 (highest level of protection)
  • maximum view of all sides
  • refrigerator
  • car radio
  • camera for front wheel and for the rear of the machine
  • pneumatically handled steps

Hydrostatic drive

  • New PH hydro engines with integrated brakes
  • Boosted Breaking system (braking without increasing engine revolution)
  • Off Road valves for maximum drive through terrain
  • possibility for emergency release of the brakes in case of defect
  • gradability up to 30 %
  • ECODRIVE - optimal revolution of the engine according to load = lower consumption

Engine

  • engine FPT 6cylinder
  • volume 6700 cm3
  • complies to emission class Stage V
  • engine output 210 kV (285 HP)
  • torque 1150 Nm / 1500 pm

Steering

  • modern system of wheel steering
  • 3 modes: front axle (road mode)/ front-back axle/ crab mode
  • steering with geometry correction while extended axle
  • steering with correction of internal leakage of hydraulic system

Self-propelled sprayer as a system carrier can be equipped with various extensions.

Clearance 130 cm
Wheel track 2,25 - 3 m

Self-propelled sprayer DINO is specified by low centre of gravity and excellent gradability. In an extreme hilly terrain its driving characteristics are unbeatable. Because of a unique axle suspension and its construction of hydraulic drive with valve, DINO can not only drive up a high hill but can also drive through waterlogged terrain where other machines can get trapped. Because of its exchangeable extensions (spraying, spreading, tank with digestate applicator), the chassis has a wide range of use.
