The Sprayer - Something we do understand





Comfort-Terminal

The COMFORT-Terminal is ISOBUS-compatible and complies with the most demanding requirements for accuracy in agriculture. It corresponds to the ISOBUS unit, standard 11783 and is available for all machines compatible with the standard. COMFORT-Terminal offers all functions for the sprayer control. TRACK-Leader (satellite navigation), SECTION-Control (turning the sections off via satellite). Data transfer to a USB flash disc. For the COMFORT-Terminal with a GSM modem, data may be transferred directly to the farmpilot portal.

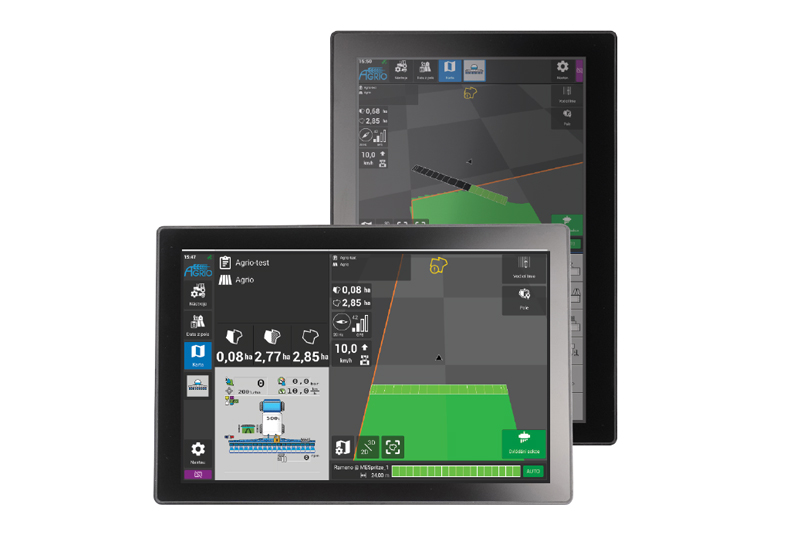

Touch1200

The TOUCH1200 is the latest generation ISOBUS terminal. It corresponds to the ISOBUS unit, standard 11783 and is available for all machines compatible with the standard. The TOUCH1200 can be used in portrait or landscape orientation. Up to five functions can be displayed on the display at the same time. This is a foil-protected display. The TOUCH1200 comes standardly equipped with a GSM modem so that all machine data can be sent directly to the farmpilot portal. The TOUCH1200 offers all functions for the sprayer control. TRACK-Leader (satellite navigation), SECTION-Control (turning the sections off via satellite) Data transfer to a USB flash disc. Possible use for automatic Track-Leader Auto control.



Basic-Terminal

The BASIC-Terminal corresponds to the ISOBUS unit, standard 11783 and is available for all machines compatible with the standard. BASIC-Terminal offers all basic functions needed for ISOBUS operation. 5.7“ color display. All functions for the sprayer control. TRACK-Leader (satellite navigation), SECTION-Control (satellite turning the sections off)

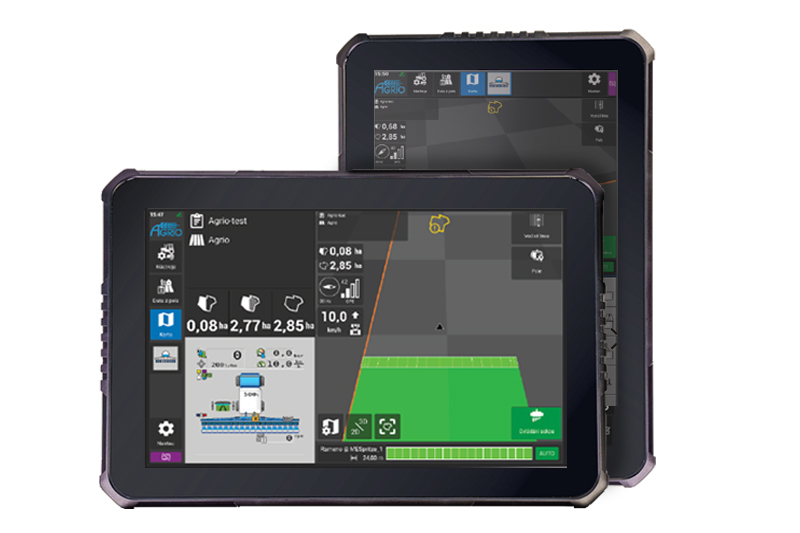

Touch800

The TOUCH800 corresponds to ISOBUS unit, standard 11783 and is available for all machines compatible with the standard. Foil-protected touch color display. All functions for the sprayer control. TRACK-Leader (satellite navigation), SECTION-Control (satellite turning the sections off). Data transfer to a USB flash disc. Two functions can be displayed on the display at the same time. Possible use for automatic Track-Leader Auto control.



Track-Guide II

A navigation system which allows for parallel, identical, smooth, and contour tracking. The field, treated and untreated area, guide track, and obstacles are shown on the color display. An acoustic and visual signal notifies the driver of the field border and before obstacles. This system allows the driver to turn spraying on/off to the extent required, thus eliminating over-spraying or under-spraying. The total acreage will appear after driving around the headland. The speed, treated area, untreated area, track, and quality of D-GPS signal appear in the lower part of the display. The navigation may be used for different field and meadow work: spraying, fertilizing, sewing, harvesting, rolling, harrowing, etc. Easy and quick installation onto a different tractor.

Track-Guide III

Fitted with an 8“ touch display, good layout and easy operation. The functions for navigation are identical to the Track-Guide II. Possible use for automatic Track-Leader Auto control. Compatible for other machines as well.

Spraylight

Dose control. Max. 7 sections. Electronic watermark of the tank level. Spray pressure sensor. Boom tilting.



Spraydos

A fully automatic control unit for the sprayers. A computer with integrated control panel. Max. 9 sections. Following and spreading of the booms. Electronic water mark of the tank level. Spray pressure sensor. Lighting of the booms. Manual switching of combination nozzles (Selejet).



Add-on S-Box to a joystick

The S-box is an add-on module for manual control of each section and connected to the terminal. Ideal for uneven application (weed nests recovery). The control panel has maximum 13 sections.



Tank-Control II

The Tank-Control II is used as an electronic water mark for the tank level. If the sprayer is fitted with Topline device, the suction and pressure functions may be toggled on the Tank-Control display. These functions may also be toggled from the computer and terminal.

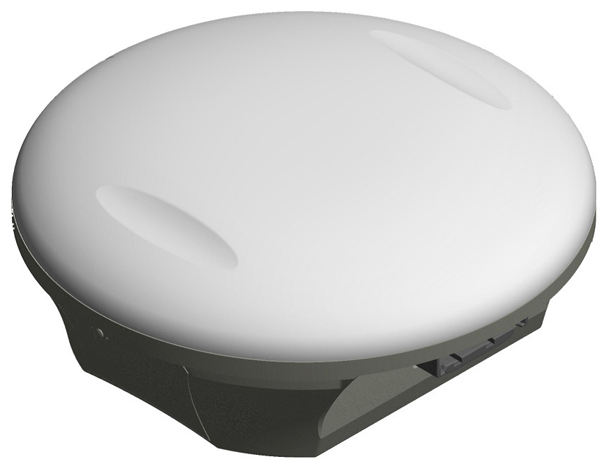

D-GPS EGNOS A101 signal receiver

(Variation +/- 25cm for the navigator)

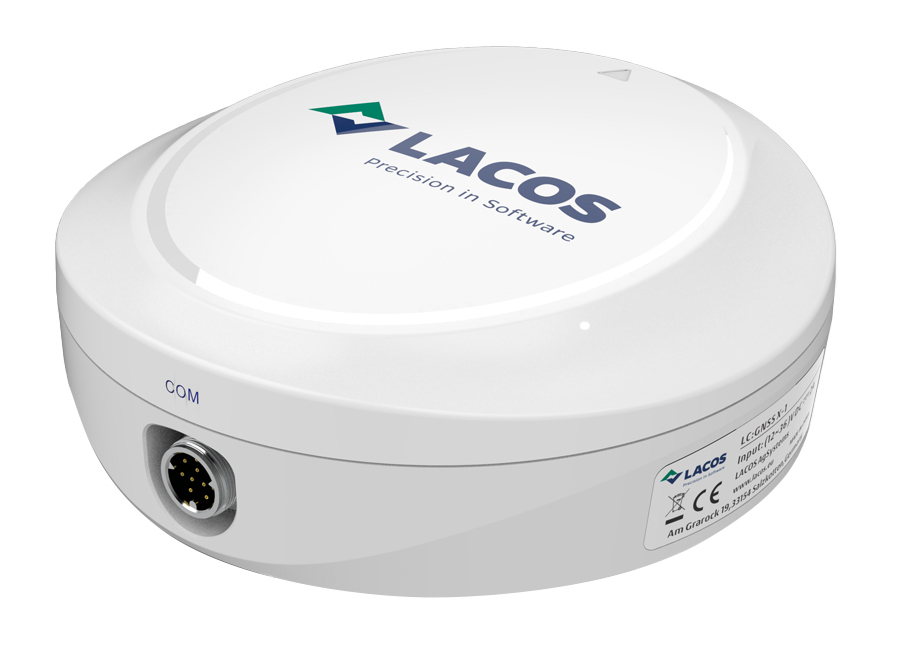

D-GPS Glonass AG-STAR signal receiver

(Variation +/- 20cm)

D-GPS Glonass Smart 6L GSM/RTK signal receiver

Variant GSM (Variation +/- 15cm
Variant RTK - paid correction (Variation +/- 2cm
for the navigator)

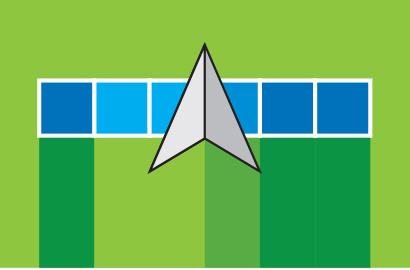

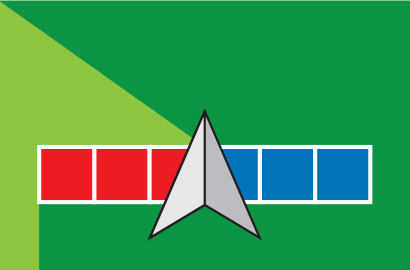

Section-Control

Software for automatically turning sections off for ISOBUS machines only in connection with the terminal, Track-Leader II, and GPS signal. Section-Control can be used for the sprayers, seeding machines, and industrial fertilizer spreaders.



Track-Leader AUTO

The TRACK-Leader Auto esteer allows for automatic machine steering. Simple add-on equipment that can be used regardless of the manufacturer. The steering is integrated into the existing steering wheel. The TRACK-Leader Auto Pro (hydraulic) is designed for tractors and machines not fitted with any control unit. The TRACK-Leader Auto Iso (hydraulic) is designed for tractors and machines already fitted with a control unit and which only need a control computer.

Konfigurator Track leader AUTO

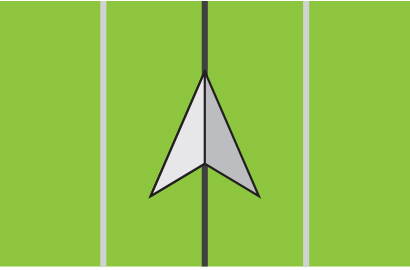

Track-Leader II

Navigator software for terminals allowing for parallel, identical, smooth, and contour tracking in connection with D-GPS.
