The Sprayer - Something we do understand

Alka

Alka

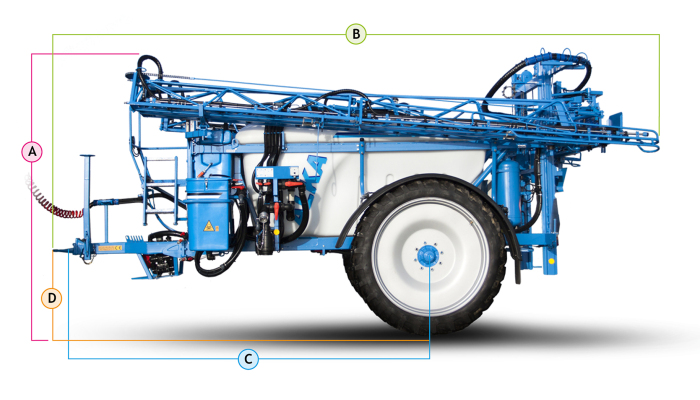

Dimensions

Type A B C D E
Alka 18 2900 2800 3900 1000 2600
Alka 21 2900 2500 3900 1000 2600

E Indicated width of the sprayer

Weight

Type Empty (kg) Full (kg)
Alka 2500 2200 5300
Alka 3000 2200 5800

Booms and tank

 Fiverberglass Tank

Work. width (m)      Content (l)
15 - 21 3000

PE

Work. width (m)       Content (l)
15 - 21 2500

Wheels





Description

Basic equipment

  • upper hinge
  • fixed shaft
  • non-suspended axle extendable 5t ADR
  • air and parking brake
  • AR 185 pump driven by homokinetic drive
  • polyethylene main tank without breakwaters with internal
  • washing, pressure and overflow agitation
  • manually tilting PE 60l admixing tank with quadruple function controller, internal washing, water mark, rinsing nozzle for canisters, and agitating nozzle
  • 15l canister for washing, 370l PE tank for clean water
  • with water meter, without external filling and suction
  • 5-way pressure valve, 1 suction + 1 pressure filter
  • computer SPRAYDOS
  • 4 working width sections
  • air control fitting
  • booms without active tilting
  • without shock absorbers on the booms, without spring followers
  • base 18 - 1 pair of shock absorbers on swing
  • base 21 - 1 pair of shock absorbers on swing and 1 pair on stabilizers
  • stainless steel pipes in the booms Ø 20mm with triple nozzle holders in 50cm intervals
  • lights for road travel
  • hydraulics controlled with two hydraulic circuits from the tractor
  • homokinetic joint drive
  • wheels 340/85 R38 151 A8



The Alka with 2700l tank is the smallest trailed sprayer from Agrio. With its favorable price, this is the entry product for the smallest farmers who have used only portable sprayers so far. The machine quality is high, and the component base is identical to all other types. This makes for a very long lifecycle, which is positively reflected in the future sale of a used sprayer.
